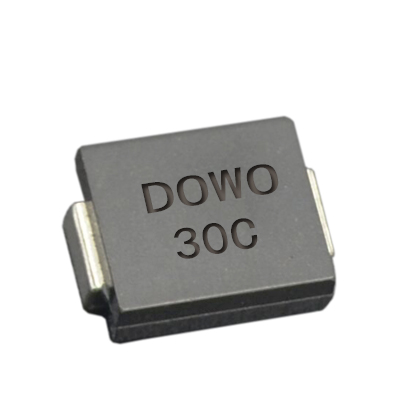

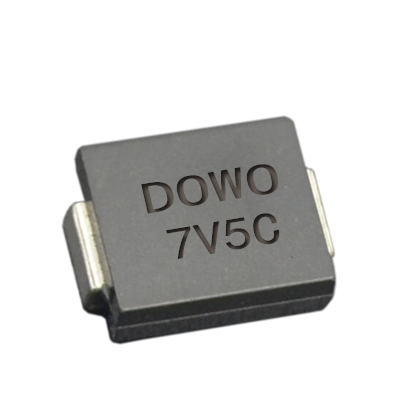

1.5SMC系列

东沃电子1.5SMC系列瞬变电压抑制二极管,可靠稳定、品质卓越、型号齐全、价格美丽,免费提供测试、方案、样品服务,同时可根据客户的需求进行定制。
封装形式:SMC/DO-214AB
脉冲功率:1500 W
工作电压:6.8 V-600.0 V
脉冲电流:1.81 A-142.86 A
响应时间:<1.0 PS

产品详情

产品特性
• 玻璃钝化芯片
• 在10/1000μ波形重复率(占空比):0.01%下,峰值脉冲功率可达1500w
• 低漏电流
• 单、双向单元
• 优良的钳位能力
• 快速的响应时间
• 通过无铅认证,符合ROHS

机械参数
• 方法:模制塑料
• 环氧树脂:UL 94V-0阻燃剂
• 引线:可焊性按MIL-STD-750,方法2026可焊
• 极性:除双极性外有色带的一端为阴极
• 安装位置:任何


型号 图片 封装 VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) 下载

1.5SMC6.8A/1.5SMC6.8CA

SMC/DO-214AB

6.46

7.14

10

1000

5.8

142.86

10.5

1.5SMC7.5A/1.5SMC7.5CA

SMC/DO-214AB

7.13

7.88

10

500

6.4

132.74

11.3

1.5SMC8.2A/1.5SMC8.2CA

SMC/DO-214AB

7.79

8.61

10

200

7.0

123.97

12.1

1.5SMC9.1A/1.5SMC9.1CA

SMC/DO-214AB

8.65

9.56

1

50

7.8

111.94

13.4

1.5SMC10A/1.5SMC10CA

SMC/DO-214AB

9.50

10.50

1

10

8.6

103.45

14.5

1.5SMC11A/1.5SMC11CA

SMC/DO-214AB

10.45

11.55

1

5

9.4

96.15

15.6

1.5SMC12A/1.5SMC12CA

SMC/DO-214AB

11.40

12.60

1

5

10.2

89.82

16.7

1.5SMC13A/1.5SMC13CA

SMC/DO-214AB

12.35

13.65

1

1

11.1

82.42

18.2

1.5SMC15A/1.5SMC15CA

SMC/DO-214AB

14.25

15.75

1

1

12.8

70.75

21.2

1.5SMC16A/1.5SMC16CA

SMC/DO-214AB

15.20

16.80

1

1

13.60

66.67

22.5

1.5SMC18A/1.5SMC18CA

SMC/DO-214AB

17.10

18.90

1

1

15.3

59.52

25.2

1.5SMC20A/1.5SMC20CA

SMC/DO-214AB

19.00

21.00

1

1

17.1

54.15

27.7

1.5SMC22A/1.5SMC22CA

SMC/DO-214AB

20.90

23.10

1

1

18.8

49.02

30.6

1.5SMC24A/1.5SMC24CA

SMC/DO-214AB

22.80

25.20

1

1

20.5

45.18

33.2

1.5SMC27A/1.5SMC27CA

SMC/DO-214AB

25.65

28.35

1

1

23.1

40.00

37.5

1.5SMC30A/1.5SMC30CA

SMC/DO-214AB

28.50

31.50

1

1

25.6

36.23

41.4

1.5SMC33A/1.5SMC33CA

SMC/DO-214AB

31.35

34.65

1

1

28.2

32.82

45.7

1.5SMC36A/1.5SMC36CA

SMC/DO-214AB

34.20

37.80

1

1

30.8

30.06

49.9

1.5SMC39A/1.5SMC39CA

SMC/DO-214AB

37.05

40.95

1

1

33.3

27.83

53.9

1.5SMC43A/1.5SMC43CA

SMC/DO-214AB

40.85

45.15

1

1

36.8

25.30

59.3

1.5SMC47A/1.5SMC47CA

SMC/DO-214AB

44.65

49.35

1

1

40.2

23.15

64.8

1.5SMC51A/1.5SMC51CA

SMC/DO-214AB

48.45

53.55

1

1

43.6

21.40

70.1

1.5SMC56A/1.5SMC56CA

SMC/DO-214AB

53.20

58.80

1

1

47.8

19.48

77.0

1.5SMC62A/1.5SMC62CA

SMC/DO-214AB

58.90

65.10

1

1

53.0

17.65

85.0

1.5SMC68A/1.5SMC68CA

SMC/DO-214AB

64.60

71.40

1

1

58.1

16.30

92.0

1.5SMC75A/1.5SMC75CA

SMC/DO-214AB

71.25

78.75

1

1

64.1

14.56

103.0

1.5SMC82A/1.5SMC82CA

SMC/DO-214AB

77.90

86.10

1

1

70.1

13.27

113.0

1.5SMC91A/1.5SMC91CA

SMC/DO-214AB

86.45

195.55

1

1

77.8

12.00

125.0

1.5SMC100A/1.5SMC100CA

SMC/DO-214AB

95.00

105.00

1

1

85.5

10.95

137.0

1.5SMC110A/1.5SMC110CA

SMC/DO-214AB

104.50

115.50

1

1

94.0

9.87

152.0

1.5SMC120A/1.5SMC120CA

SMC/DO-214AB

114.00

126.00

1

1

102.0

9.09

165.0

1.5SMC130A/1.5SMC130CA

SMC/DO-214AB

123.50

136.50

1

1

111.0

8.38

179.0

1.5SMC150A/1.5SMC150CA

SMC/DO-214AB

142.50

157.50

1

1

128.0

7.25

207.0

1.5SMC160A/1.5SMC160CA

SMC/DO-214AB

152.00

168.00

1

1

136.0

6.85

219.0

1.5SMC170A/1.5SMC170CA

SMC/DO-214AB

161.50

178.50

1

1

145.0

6.41

234.0

1.5SMC180A/1.5SMC180CA

SMC/DO-214AB

171.00

189.00

1

1

154.0

6.10

246.0

1.5SMC200A/1.5SMC200CA

SMC/DO-214AB

190.00

210.00

1

1

171.0

5.47

274.0

1.5SMC220A/1.5SMC220CA

SMC/DO-214AB

209.00

231.00

1

1

185.0

4.57

328.0

1.5SMC250A/1.5SMC250CA

SMC/DO-214AB

237.50

262.50

1

1

214.0

4.36

344.0

1.5SMC300A/1.5SMC300CA

SMC/DO-214AB

285.00

315.00

1

1

256.0

3.62

414.0

1.5SMC350A/1.5SMC350CA

SMC/DO-214AB

332.50

367.50

1

1

299.3

3.11

482.0

1.5SMC380A/1.5SMC380CA

SMC/DO-214AB

361.00

399.00

1

1

324.9

2.86

524.4

1.5SMC400A/1.5SMC400CA

SMC/DO-214AB

380.00

420.00

1

1

342.0

2.72

548.0

1.5SMC440A/1.5SMC440CA

SMC/DO-214AB

418.00

462.00

1

1

376.2

2.47

602.0

1.5SMC500A/1.5SMC500CA

SMC/DO-214AB

475.00

525.00

1

1

427.5

2.17

690.0

1.5SMC520A/1.5SMC520CA

SMC/DO-214AB

494.00

546.00

1

1

444.6

2.09

717.6

1.5SMC550A/1.5SMC550CA

SMC/DO-214AB

522.50

577.50

1

1

470.3

1.98

759.0

1.5SMC600A/1.5SMC600CA

SMC/DO-214AB

570.00

630.00

1

1

513.0

1.81

828.00
