ESD靜電保護管具有反應速度快，導通電壓低、體積小、集成度高、同時實現多條數據線保護，電容值較低，是理想的高頻數據保護器件，多樣化封裝，完全可實現在不同位置、空間上靈活地進行集成化ESD保護。
ESD靜電保護器件的端口應用主要集中在：DC12V、Auto DC12/24V、MID charger interface、48VDC、AC24V、BUS、AC220V、RS485 BUS、A/V interface、Motor control、CAN BUS、SLIC circuit、xDSL interface、G.fast interface、USB interface、Ethernet interface、PoE、SIM interface、SD interface、I/O interface、USB2.0/3.0 interface、HDMI interface、RF Antenna。
東沃電子專業供應ESD靜電保護二極管，封裝多樣、種類繁多、型號齊全；品質卓越、現貨庫存、廠家價格；免費EMC測試、免費解決方案、免費指導選型、免費申請樣品！
| 型號 | 圖片 | 封裝 | VBR.MIN(V) | Ppp(W) | CJ(PF) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | 下載 |
|---|---|---|---|---|---|---|---|---|---|---|
|

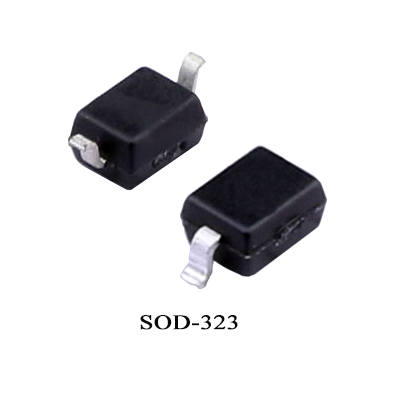

SOD-323 |
4.0 |
100 |
13-15 |
1 |
3.3 |
6 |
14 |
|
|
|

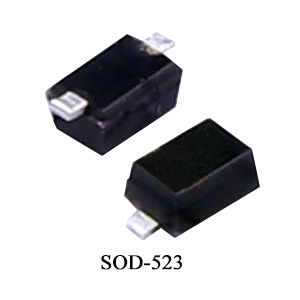

SOD-523 |
5.0 |
200 |
100 |
1 |
3.3 |
11.0 |
8.3-14.1 |
|
|
|
SOD-323 |
4.0 |
450 |
37-40 |
0.2 |
3.3 |
30 |
15 |
|
|
|
DFN0603-D |
3.7 |
100 |
7.5-8.5 |
0.1 |
3.3 |
7 |
5.5-10.0 |
|
|
|

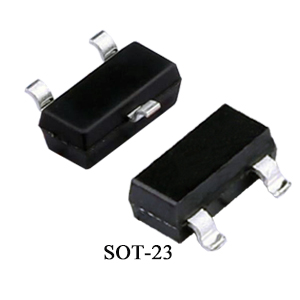

SOT-23 |
4 |
350 |
100 |
1 |
3.3 |
20 |
7-15 |
|
|
|
SOT-23 |
4 |
350 |
100-200 |
1 |
3.3 |
25 |
14 |
|
|
|
SOT-563 |
15 |
200 |
15-18 |
0.1 |
3.3 |
15 |
12 |
|
|
|
SOD-323F |
5 |
1500 |
700 |
0.5 |
4.5 |
100 |
15 |
|
|
|
DFN-2L |
6 |
1500 |
700 |
0.2 |
4.5 |
100 |
15 |
|
|
|
SOD-523 |
6.0 |
200 |
90 |
1 |
5.0 |
12 |
9.3-17 |
|
|
|
DFN-2L |
6.0 |
100 |
7-10 |
0.2 |
5.0 |
5 |
9.5-15 |
|
|
|
SOD-323 |
6.0 |
500 |
210-300 |
1.0 |
5.0 |
28 |
17 |
|
|
|
DFN0603-D |
6.0 |
90 |
6 |
0.05 |
5.0 |
5 |
9.5-15 |
|
|
|
DFN0603-D |
6.0 |
90 |
6 |
0.2 |
5.0 |
5 |
9.5-15 |
|
|
|
DFN0603-D |
6.0 |
/ |
12-15 |
0.5 |
5.0 |
5.5 |
9.8-12.5 |
|
|
|
SOT-23 |
6.0 |
450 |
30-35 |
0.5 |
5.0 |
25 |
9.8-20 |
|
|
|
SOT-23 |
6.0 |
300 |
100-150 |
1 |
5.0 |
18 |
9.8-16.7 |
|
|
|
SOT-353 |
6.0 |
100 |
22-25 |
1 |
5.0 |
5.5 |
9.6-18 |
|
|
|
SOD-323F |
8.0 |
2500 |
485 |
0.2 |
7.0 |
100 |
23-25 |
|
|
|
DFN-2L |
8.0 |
2500 |
485 |
0.2 |
7.0 |
100 |
23-25 |
|
|
|
DFN-2L |
8.0 |
6000 |
990-1000 |
0.2 |
7.0 |
200 |
30 |
|
|
|
SOD-323F |
13.0 |
1500 |
265 |
0.2 |
12 |
50 |
30 |
|
|
|
SOD-323 |
13.3 |
500 |
25 |
1 |
12.0 |
12 |
33-35 |
|
|
|
DFN-2L |
13.3 |
150 |
11 |
0.2 |
12.0 |
5 |
20-26 |
|
|
|
DFN-2L |
13.0 |
1500 |
265 |
0.2 |
12.0 |
50 |
30 |
|
|
|
SOT-23 |
13.3 |
350 |
30 |
1 |
12 |
12 |
18-25 |
|
|
|
SOT-23 |
13.3 |
300 |
30-50 |
1 |
12.0 |
12 |
19-25 |
|
|
|
DFN-2L |
13.0 |
3600 |
530-540 |
0.2 |
12.0 |
110 |
30 |
|
|
|
SOD-323 |
14.0 |
500 |
25 |
1 |
13.0 |
12 |
33-35 |
|
|
|
SOT-23 |
16.7 |
350 |
25-28 |
1 |
15.0 |
10 |
24-35 |
|
|
|
SOT-23 |
16.7 |
350 |
25-45 |
1 |
15.0 |
10 |
24-35 |
|
|
|
SOT-23 |
26.2 |
350 |
30-40 |
0.2 |
24.0 |
6.5 |
40-52 |
|
|
|
SOT-23 |
26.7 |
250 |
15 |
1 |
24.0 |
6 |
40 |
|
|
|
SOT-23 |
26.7 |
300 |
16-30 |
1 |
24.0 |
5 |
40-55 |
|
|
|
DFN-2L |
28.9 |
6000 |
250-270 |
0.5 |
26.0 |
70 |
80 |
|
|
|
SOT-23 |
40.0 |
550 |
15-20 |
1 |
36.0 |
6 |
55-85 |
|
|
|
SOT-23 |
26.7 |
250 |
15 |
1 |
24 |
6 |
40 |
|
