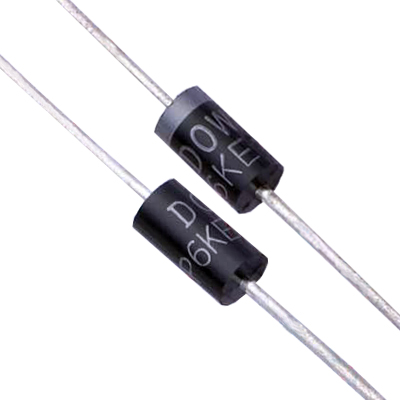

產品特性
• 玻璃鈍化芯片
• 在10/1000μ波形重復率（占空比）：0.01%下，峰值脈沖功率可達600w
• 低漏電流
• 單、雙向單元
• 優良的鉗位能力
• 快速的響應時間
• 通過無鉛認證，符合ROHS
機械參數
• 方法：模制塑料
• 環氧樹脂：UL 94V-0阻燃劑
• 引線：可焊性按MIL-STD-202，方法208可焊
• 極性：除雙極性外有色帶的壹端為陰極
• 安裝位置：任何
| 型號 | 圖片 | 封裝 | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | 下載 |
|---|---|---|---|---|---|---|---|---|---|---|
|
DO-15 |
6.46 |
7.14 |
10 |
1000 |
5.8 |
57.14 |
10.5 |
|
|
|
D0-15 |
7.13 |
7.88 |
10 |
500 |
6.4 |
53.10 |
11.3 |
|
|
|
DO-15 |
7.79 |
8.61 |
10 |
200 |
7.0 |
49.59 |
12.1 |
|
|
|
DO-15 |
8.65 |
9.56 |
1 |
50 |
7.8 |
44.78 |
13.4 |
|
|
|
DO-15 |
9.50 |
10.50 |
1 |
10 |
8.6 |
41.38 |
14.5 |
|
|
|
DO-15 |
10.45 |
11.55 |
1 |
5 |
9.4 |
38.46 |
15.6 |
|
|
|
DO-15 |
11.40 |
12.60 |
1 |
5 |
10.2 |
35.93 |
16.7 |
|
|
|
DO-15 |
12.35 |
13.65 |
1 |
1 |
11.1 |
32.97 |
18.2 |
|
|
|
DO-15 |
14.25 |
15.75 |
1 |
1 |
12.8 |
28.30 |
21.2 |
|
|
|
DO-15 |
15.20 |
16.80 |
1 |
1 |
13.6 |
26.67 |
22.5 |
|
|
|
DO-15 |
17.10 |
18.90 |
1 |
1 |
15.3 |
23.81 |
25.2 |
|
|
|
DO-15 |
19.00 |
21.00 |
1 |
1 |
17.1 |
21.66 |
27.7 |
|
|
|
DO-15 |
20.90 |
23.10 |
1 |
1 |
18.8 |
19.61 |
30.6 |
|
|
|
DO-15 |
22.80 |
25.20 |
1 |
1 |
20.5 |
18.07 |
33.2 |
|
|
|
DO-15 |
25.65 |
28.35 |
1 |
1 |
23.1 |
16.00 |
37.5 |
|
|
|
DO-15 |
28.50 |
31.50 |
1 |
1 |
25.6 |
14.49 |
41.4 |
|
|
|
DO-15 |
31.35 |
34.65 |
1 |
1 |
28.2 |
13.13 |
45.7 |
|
|
|
DO-15 |
34.20 |
37.80 |
1 |
1 |
30.8 |
12.02 |
49.9 |
|
|
|
DO-15 |
37.05 |
40.95 |
1 |
1 |
33.3 |
11.13 |
53.9 |
|
|
|
DO-15 |
40.85 |
45.15 |
1 |
1 |
36.8 |
10.12 |
59.3 |
|
|
|
DO-15 |
44.65 |
49.35 |
1 |
1 |
40.2 |
9.26 |
64.8 |
|
|
|
DO-15 |
48.45 |
53.55 |
1 |
1 |
43.6 |
8.56 |
70.1 |
|
|
|
DO-15 |
53.20 |
58.80 |
1 |
1 |
47.8 |
7.79 |
77.0 |
|
|
|
DO-15 |
58.90 |
65.10 |
1 |
1 |
53.0 |
7.06 |
85.0 |
|
|
|
DO-15 |
64.60 |
71.40 |
1 |
1 |
58.1 |
6.52 |
92.0 |
|
|
|
DO-15 |
71.25 |
78.75 |
1 |
1 |
64.1 |
5.83 |
103.0 |
|
|
|
DO-15 |
77.90 |
86.10 |
1 |
1 |
70.1 |
5.31 |
113.0 |
|
|
|
DO-15 |
86.45 |
95.55 |
1 |
1 |
77.8 |
4.80 |
125.0 |
|
|
|
DO-15 |
95.00 |
105.00 |
1 |
1 |
85.5 |
4.38 |
137.0 |
|
|
|
DO-15 |
104.50 |
115.50 |
1 |
1 |
94.0 |
3.95 |
152.0 |
|
|
|
DO-15 |
114.00 |
126.00 |
1 |
1 |
102.0 |
3.364 |
165.0 |
|
|
|
DO-15 |
123.50 |
136.50 |
1 |
1 |
111.0 |
3.35 |
179.0 |
|
|
|
DO-15 |
142.50 |
157.50 |
1 |
1 |
128.0 |
2.90 |
207.0 |
|
|
|
DO-15 |
152.00 |
168.00 |
1 |
1 |
136.0 |
2.74 |
219.0 |
|
|
|
DO-15 |
161.50 |
178.50 |
1 |
1 |
145.0 |
2.56 |
234.0 |
|
|
|
DO-15 |
171.00 |
189.00 |
1 |
1 |
154.0 |
2.44 |
246.0 |
|
|
|
DO-15 |
190.00 |
210.00 |
1 |
1 |
171.0 |
2.19 |
274.0 |
|
|
|
DO-15 |
209.00 |
231.00 |
1 |
1 |
185.0 |
1.83 |
328.0 |
|
|
|
DO-15 |
237.50 |
262.50 |
1 |
1 |
214.0 |
1.74 |
344.0 |
|
|
|
DO-15 |
285.00 |
315.00 |
1 |
1 |
256.0 |
1.45 |
414.0 |
|
|
|
DO-15 |
332.50 |
367.50 |
1 |
1 |
299.3 |
1.24 |
482.0 |
|
|
|
DO-15 |
361.00 |
399.00 |
1 |
1 |
324.9 |
1.14 |
524.4 |
|
|
|
DO-15 |
380.00 |
420.00 |
1 |
1 |
342.0 |
1.09 |
548.0 |
|
|
|
DO-15 |
418.00 |
462.00 |
1 |
1 |
376.2 |
0.99 |
607.2 |
|
|
|
DO-15 |
475.00 |
525.00 |
1 |
1 |
427.5 |
0.87 |
690.0 |
|
|
|
DO-15 |
494.00 |
546.00 |
1 |
1 |
444.6 |
0.84 |
717.6 |
|
|
|
DO-15 |
522.50 |
577.50 |
1 |
1 |
470.3 |
0.79 |
759.0 |
|
|
|
DO-15 |
570.00 |
630.00 |
1 |
1 |
513.0 |
0.72 |
828.0 |
|
