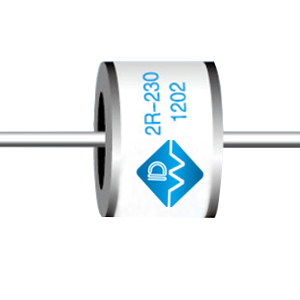

Φ8×6mm(20KA)

Search： SM8S33A SMF3.3A P6KE6.8CA 30KP30CA 5.0SMDJ36CA

Product Details

Part Number	Size	Nominal DC Spark-over Voltage(V)	Maximum impulse sparkover voltage(V)	8/20μs(KA)	10/1000μs(A)	AC discharge current (A)	Minimum insulation resistance(ΜΩ)	C(pF)

2R75-20	8×6mm	75±20%	600	20	100	20	1000	1.5
2R75I-20	8×6mm	75±20%	600	20	100	20	1000	1.5
2R90-20	8×6mm	90±20%	600	20	100	20	1000	1.5
2R90I-20	8×6mm	90±20%	600	20	100	20	1000	1.5
2R150-20	8×6mm	150±20%	600	20	100	20	1000	1.5
2R150I-20	8×6mm	150±20%	600	20	100	20	1000	1.5
2R230-20	8×6mm	230±20%	650	20	100	20	1000	1.5
2R230I-20	8×6mm	230±20%	650	20	100	20	1000	1.5
2R350-20	8×6mm	350±20%	700	20	100	20	1000	1.5
2R350I-20	8×6mm	350±20%	700	20	100	20	1000	1.5
2R470-20	8×6mm	470±20%	800	20	100	20	1000	1.5
2R470I-20	8×6mm	470±20%	800	20	100	20	1000	1.5
2R600-20	8×6mm	600±20%	1000	20	100	20	1000	1.5
2R600I-20	8×6mm	600±20%	1000	20	100	20	1000	1.5
2R800-20	8×6mm	800±20%	1200	20	100	20	1000	1.5
2R800I-20	8×6mm	800±20%	1200	20	100	20	1000	1.5
