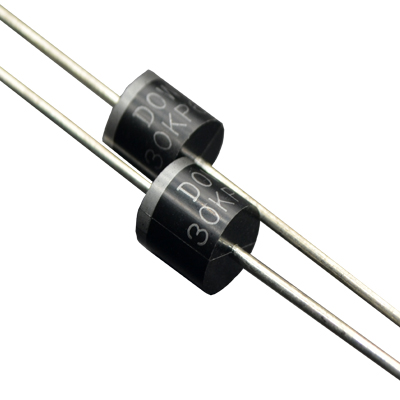

• Glass passivated chip
• 30000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty
cycle):0.01 %
• Low leakage
• Uni and Bidirectional unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant
| Part Number | Picture | Encapsulation | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | Download |
|---|---|---|---|---|---|---|---|---|---|---|
|
R-6/P600 |
31.28 |
34.41 |
50 |
5000 |
28 |
606.00 |
50.0 |
|
|
|
R-6/P600 |
33.51 |
36.86 |
50 |
5000 |
30 |
548.90 |
55.2 |
|
|
|
R-6/P600 |
36.90 |
40.59 |
50 |
5000 |
33.30 |
517.90 |
58.5 |
|
|
|
R-6/P600 |
40.20 |
44.22 |
50 |
5000 |
36 |
490.30 |
61.8 |
|
|
|
R-6/P600 |
43.60 |
47.96 |
20 |
2000 |
39 |
450.90 |
67.2 |
|
|
|
R-6/P600 |
46.90 |
51.59 |
10 |
1000 |
42 |
420.80 |
72.0 |
|
|
|
R-6/P600 |
48.00 |
52.80 |
10 |
1000 |
43 |
415.10 |
73.0 |
|
|
|
R-6/P600 |
50.30 |
55.33 |
5 |
250 |
45 |
391.50 |
77.4 |
|
|
|
R-6/P600 |
53.60 |
58.96 |
5 |
150 |
48 |
371.30 |
81.6 |
|
|
|
R-6/P600 |
57.00 |
62.70 |
5 |
50 |
51 |
350.70 |
86.4 |
|
|
|
R-6/P600 |
60.30 |
66.33 |
5 |
20 |
54 |
331.50 |
91.4 |
|
|
|
R-6/P600 |
64.80 |
71.28 |
5 |
20 |
58 |
327.90 |
92.4 |
|
|
|
R-6/P600 |
67.00 |
73.70 |
5 |
15 |
60 |
297.10 |
102.0 |
|
|
|
R-6/P600 |
71.50 |
78.65 |
5 |
10 |
64 |
291.30 |
104.0 |
|
|
|
R-6/P600 |
73.70 |
81.07 |
5 |
2 |
66 |
283.20 |
107.0 |
|
|
|
R-6/P600 |
78.20 |
86.02 |
5 |
2 |
70 |
278.00 |
109.0 |
|
|
|
R-6/P600 |
79.30 |
87.23 |
5 |
2 |
71 |
271.70 |
111.5 |
|
|
|
R-6/P600 |
80.40 |
88.44 |
5 |
2 |
72 |
265.80 |
114.0 |
|
|
|
R-6/P600 |
83.80 |
92.18 |
5 |
2 |
75 |
253.80 |
119.4 |
|
|
|
R-6/P600 |
87.10 |
95.81 |
5 |
2 |
78 |
234.90 |
129.0 |
|
|
|
R-6/P600 |
93.80 |
103.18 |
5 |
2 |
84 |
217.70 |
139.2 |
|
|
|
R-6/P600 |
100.50 |
110.55 |
5 |
2 |
90 |
207.00 |
146.4 |
|
|
|
R-6/P600 |
107.20 |
117.92 |
5 |
2 |
96 |
194.20 |
156.0 |
|
|
|
R-6/P600 |
113.90 |
125.29 |
5 |
2 |
102 |
183.00 |
165.6 |
|
|
|
R-6/P600 |
120.60 |
132.66 |
5 |
2 |
108 |
172.90 |
175.2 |
|
|
|
R-6/P600 |
134.00 |
147.40 |
5 |
2 |
120 |
155.90 |
194.4 |
|
|
|
R-6/P600 |
147.40 |
162.14 |
5 |
2 |
132 |
142.30 |
213.0 |
|
|
|
R-6/P600 |
160.80 |
176.88 |
5 |
2 |
144 |
135.80 |
223.2 |
|
|
|
R-6/P600 |
167.60 |
184.36 |
5 |
2 |
150 |
129.80 |
233.4 |
|
|
|
R-6/P600 |
174.30 |
191.73 |
5 |
2 |
156 |
123.70 |
245.0 |
|
|
|
R-6/P600 |
178.70 |
196.57 |
5 |
2 |
160 |
120.00 |
252.6 |
|
|
|
R-6/P600 |
187.70 |
206.47 |
5 |
2 |
168 |
111.20 |
272.4 |
|
|
|
R-6/P600 |
189.90 |
208.89 |
5 |
2 |
170 |
110.20 |
275.0 |
|
|
|
R-6/P600 |
201.10 |
221.21 |
5 |
2 |
180 |
104.30 |
290.4 |
|
|
|
R-6/P600 |
221.20 |
243.32 |
5 |
2 |
198 |
94.70 |
319.8 |
|
|
|
R-6/P600 |
241.30 |
265.43 |
5 |
2 |
216 |
86.90 |
348.6 |
|
|
|
R-6/P600 |
268.10 |
294.91 |
5 |
2 |
240 |
78.30 |
387.0 |
|
|
|
R-6/P600 |
288.20 |
317.02 |
5 |
2 |
258 |
72.80 |
416.4 |
|
|
|
R-6/P600 |
290.40 |
319.44 |
5 |
2 |
260 |
72.80 |
416.0 |
|
|
|
R-6/P600 |
301.60 |
331.76 |
5 |
2 |
270 |
69.50 |
436.2 |
|
|
|
R-6/P600 |
312.80 |
344.08 |
5 |
2 |
280 |
65.30 |
464.0 |
|
|
|
R-6/P600 |
321.70 |
353.87 |
5 |
2 |
288 |
64.50 |
469.9 |
|
|
|
R-6/P600 |
334.00 |
367.40 |
5 |
2 |
300 |
62.00 |
484.0 |
|
|
|
R-6/P600 |
356.00 |
|
5 |
2 |
320 |
57.00 |
530.0 |
|
