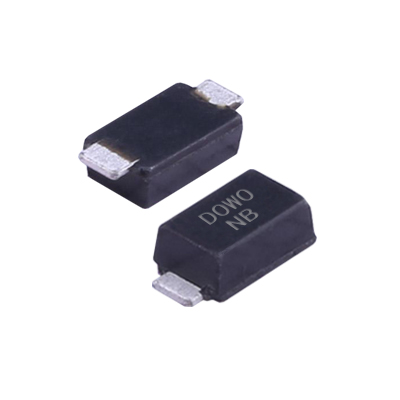

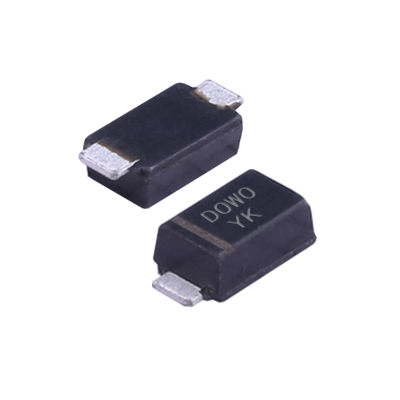

SMF Series

Encapsulation: SOD-123
Ppp: 200W
Vrwm: 5.0 V-350.0 V
Ipp: 0.36 A-21.74 A
Response Time: <1.0PS

Product Details

• Glass passivated chi

• 200 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty

cycle):0.01 %

• Low leakage
• Uni and Bidirectional unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant

Part Number Picture Encapsulation VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) Download

SMF3.3A

SOD-123

5.20

6.00

10

600

3.3

25.00

8.0

SMF5.0A/SMF5.0CA

SOD-123

6.40

7.00

10

400

5.0

21.74

9.2

SMF6.0A/SMF6.0CA

SOD-123

6.67

7.37

10

400

6.0

19.42

10.3

SMF6.5A/SMF6.5CA

SOD-123

7.22

7.98

10

250

6.5

17.86

11.2

SMF7.0A/SMF7.0CA

SOD-123

7.78

8.60

10

100

7.0

16.67

12.0

SMF7.5A/SMF7.5CA

SOD-123

8.33

9.21

1

50

7.5

15.50

12.9

SMF8.0A/SMF8.0CA

SOD-123

8.89

9.83

1

25

8.0

14.71

13.6

SMF8.5A/SMF8.5CA

SOD-123

9.44

10.40

1

10

8.5

13.89

14.4

SMF9.0A/SMF9.0CA

SOD-123

10.00

11.10

1

5

9.0

12.99

15.4

SMF10A/SMF10CA

SOD-123

11.10

12.30

1

2.5

10.0

11.76

17.0

SMF11A/SMF11CA

SOD-123

12.20

13.50

1

2.5

11.0

10.99

18.2

SMF12A/SMF12CA

SOD-123

13.30

14.70

1

2.5

12.0

10.05

19.9

SMF13A/SMF13CA

SOD-123

14.40

15.90

1

1

13.0

9.30

21.5

SMF14A/SMF14CA

SOD-123

15.60

17.20

1

1

14.0

8.62

23.2

SMF15A/SMF15CA

SOD-123

16.70

18.50

1

1

15.0

8.20

24.4

SMF16A/SMF16CA

SOD-123

17.80

19.70

1

1

16.0

7.69

26.0

SMF17A/SMF17CA

SOD-123

18.90

20.90

1

1

17.0

7.25

27.6

SMF18A/SMF18CA

SOD-123

20.00

22.10

1

1

18.0

6.85

29.2

SMF19A/SMF19CA

SOD-123

21.10

23.30

1

1

19.0

6.54

30.6

SMF20A/SMF20CA

SOD-123

22.20

24.50

1

1

20.0

6.17

32.4

SMF22A/SMF22CA

SOD-123

24.40

26.90

1

1

22.0

5.63

35.5

SMF24A/SMF24CA

SOD-123

26.70

29.50

1

1

24.0

5.14

38.9

SMF26A/SMF26CA

SOD-123

28.90

31.90

1

1

26.0

4.75

42.1

SMF28A/SMF28CA

SOD-123

31.10

34.40

1

1

28.0

4.41

45.4

SMF30A/SMF30CA

SOD-123

33.30

36.80

1

1

30.0

4.13

48.4

SMF33A/SMF33CA

SOD-123

36.70

40.60

1

1

33.0

3.75

53.3

SMF36A/SMF36CA

SOD-123

40.00

44.20

1

1

36.0

3.44

58.1

SMF40A/SMF40CA

SOD-123

44.40

49.10

1

1

40.0

3.10

64.5

SMF43A/SMF43CA

SOD-123

47.80

52.80

1

1

43.0

2.88

69.4

SMF45A/SMF45CA

SOD-123

50.00

55.30

1

1

45.0

2.75

72.7

SMF48A/SMF48CA

SOD-123

53.30

58.90

1

1

48.0

2.58

77.4

SMF51A/SMF51CA

SOD-123

56.70

62.70

1

1

51.0

2.43

82.4

SMF54A/SMF54CA

SOD-123

60.00

66.30

1

1

54.0

2.30

87.1

SMF58A/SMF58CA

SOD-123

64.40

71.20

1

1

58.0

2.14

93.6

SMF60A/SMF60CA

SOD-123

66.70

73.70

1

1

60.0

2.07

96.8

SMF64A/SMF64CA

SOD-123

71.10

78.60

1

1

64.0

1.94

103.0

SMF70A/SMF70CA

SOD-123

77.80

86.00

1

1

70.0

1.77

113.0

SMF75A/SMF75CA

SOD-123

83.30

92.10

1

1

75.0

1.65

121.0

SMF78A/SMF78CA

SOD-123

86.70

95.80

1

1

78.0

1.59

126.0

SMF80A/SMF80CA

SOD-123

88.80

97.60

1

1

80.0

1.55

129.0

SMF85A/SMF85CA

SOD-123

94.40

104.00

1

1

85.0

1.46

137.0

SMF90A/SMF90CA

SOD-123

100.00

111.00

1

1

90.0

1.37

146.0

SMF100A/SMF100CA

SOD-123

111.00

123.00

1

1

100.0

1.23

162.0

SMF110A/SMF110CA

SOD-123

122.00

135.00

1

1

110.0

1.13

177.0

SMF120A/SMF120CA

SOD-123

133.00

147.00

1

1

120.0

1.04

193.0

SMF130A/SMF130CA

SOD-123

144.00

159.00

1

1

130.0

0.96

209.0

SMF140A/SMF140CA

SOD-123

155.00

171.00

1

1

140.0

0.89

224.0

SMF150A/SMF150CA

SOD-123

167.00

185.00

1

1

150.0

0.82

243.0

SMF160A/SMF160CA

SOD-123

178.00

197.00

1

1

160.0

0.77

259.0

SMF170A/SMF170CA

SOD-123

189.00

209.00

1

1

170.0

0.73

275.0

SMF180A/SMF180CA

SOD-123

200.00

220.00

1

1

180.0

0.68

292.0

SMF190A/SMF190CA

SOD-123

211.00

232.00

1

1

190.0

0.65

308.0

SMF200A/SMF200CA

SOD-123

224.00

247.00

1

1

200.0

0.62

324.0

SMF220A/SMF220CA

SOD-123

246.00

272.00

1

1

220.0

0.56

356.0

SMF250A

SOD-123

279.00

309.00

1

1

250

0.50

405.0

SMF300A

SOD-123

335.00

371.00

1

1

300.0

0.41

486.0

SMF350A

SOD-123

391.00

432.00

1

1

350.0

0.36

567.0
