TPSMAJ Series

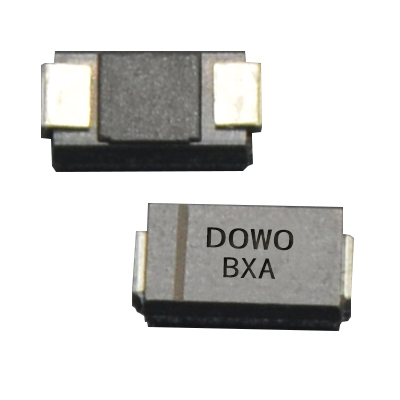

Encapsulation: SMA/DO-214AC
Ppp: 400W
Vrwm: 10 V-85 V
Ipp: 2.92 A-23.53 A
Response Time: <1.0PS

Product Details

• Glass passivated chip

• 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty

cycle):0.01 %

• High reliability application and automotive grade AEC Q101 qualified
• Low leakage
• Uni and Bidirectional unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant

Part Number Picture Encapsulation VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) Download

TPSMAJ10A/TPSMAJ10CA

SMA/DO-214AC

11.10

12.30

1

5

10.0

23.53

17.0

TPSMAJ11A/TPSMAJ11CA

SMA/DO-214AC

12.20

13.50

1

1

11.0

21.98

18.2

TPSMAJ12A/TPSMAJ12CA

SMA/DO-214AC

13.30

14.70

1

1

12.0

20.10

19.9

TPSMAJ13A/TPSMAJ13CA

SMA/DO-214AC

14.40

15.90

1

1

13.0

18.60

21.5

TPSMAJ14A/TPSMAJ14CA

SMA/DO-214AC

15.60

17.20

1

1

14.0

17.24

23.2

TPSMAJ15A/TPSMAJ15CA

SMA/DO-214AC

16.70

18.50

1

1

15.0

16.39

24.4

TPSMAJ16A/TPSMAJ16CA

SMA/DO-214AC

17.80

19.70

1

1

16.0

15.38

26.0

TPSMAJ17A/TPSMAJ17CA

SMA/DO-214AC

18.90

20.90

1

1

17.0

14.49

27.6

TPSMAJ18A/TPSMAJ18CA

SMA/DO-214AC

20.00

22.10

1

1

18.0

13.70

29.2

TPSMAJ19A/TPSMAJ19CA

SMA/DO-214AC

21.10

23.30

1

1

19.0

13.00

30.8

TPSMAJ20A/TPSMAJ20CA

SMA/DO-214AC

22.20

24.50

1

1

20.0

12.35

32.4

TPSMAJ22A/TPSMAJ22CA

SMA/DO-214AC

24.40

26.90

1

1

22.0

11.27

35.5

TPSMAJ24A/TPSMAJ24CA

SMA/DO-214AC

26.70

29.50

1

1

24.0

10.28

38.9

TPSMAJ26A/TPSMAJ26CA

SMA/DO-214AC

28.90

31.90

1

1

26.0

9.50

42.1

TPSMAJ28A/TPSMAJ28CA

SMA/DO-214AC

31.10

34.40

1

1

28.0

8.81

45.4

TPSMAJ30A/TPSMAJ30CA

SMA/DO-214AC

33.30

36.80

1

1

30.0

8.26

48.4

TPSMAJ33A/TPSMAJ33CA

SMA/DO-214AC

36.70

40.60

1

1

33.0

7.50

53.3

TPSMAJ36A/TPSMAJ36CA

SMA/DO-214AC

40.00

44.20

1

1

36.0

6.88

58.1

TPSMAJ40A/TPSMAJ40CA

SMA/DO-214AC

44.40

49.10

1

1

40.0

6.20

64.5

TPSMAJ43A/TPSMAJ43CA

SMA/DO-214AC

47.80

52.80

1

1

43.0

5.76

69.4

TPSMAJ45A/TPSMAJ45CA

SMA/DO-214AC

50.00

55.30

1

1

45.0

5.50

72.7

TPSMAJ48A/TPSMAJ48CA

SMA/DO-214AC

53.30

58.90

1

1

48.0

5.17

77.4

TPSMAJ51A/TPSMAJ51CA

SMA/DO-214AC

56.70

62.70

1

1

51.0

4.85

82.4

TPSMAJ54A/TPSMAJ54CA

SMA/DO-214AC

60.00

66.30

1

1

54.0

4.59

87.1

TPSMAJ58A/TPSMAJ58CA

SMA/DO-214AC

64.40

71.20

1

1

58.0

4.27

93.6

TPSMAJ60A/TPSMAJ60CA

SMA/DO-214AC

66.70

73.70

1

1

60.0

4.13

96.8

TPSMAJ64A/TPSMAJ64CA

SMA/DO-214AC

71.10

78.60

1

1

64.0

3.88

103.0

TPSMAJ70A/TPSMAJ70CA

SMA/DO-214AC

77.80

86.00

1

1

70.0

3.54

113.0

TPSMAJ75A/TPSMAJ75CA

SMA/DO-214AC

83.30

92.10

1

1

75.0

3.31

121.0

TPSMAJ78A/TPSMAJ78CA

SMA/DO-214AC

86.70

95.80

1

1

78.0

3.17

126.0

TPSMAJ80A/TPSMAJ80CA

SMA/DO-214AC

88.80

97.60

1

1

80.0

3.09

129.6

TPSMAJ85A/TPSMAJ85CA

SMA/DO-214AC

94.40

104.00

1

1

85.0

2.92

137.0
