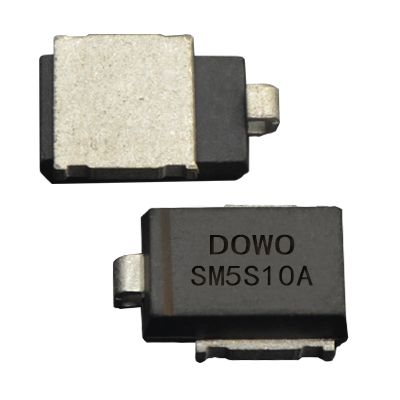

SM5S Series

Encapsulation: DO-218AB
Ppp: 3600W
Vrwm: 10V to 43V
Ipp: 52 A-212 A
Response Time: <1.0PS

Product Details

• Optimized glass passivated chip

• TJ = 175 °C capability suitable for high reliability and automotive requirement

• 3600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty

cycle):0.01 %

Meet ISO 7637-2 5a/5b and ISO 16750 load dump test (varied by test condition)

• AEC-Q101 qualified

• Low leakage current

• Low forward voltage drop

• Uni-directional polarity

• Excellent clamping capability
• Very fast response time
• RoHS compliant

Part Number Picture Encapsulation VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) Download

SM5S10A

D0-218AB

11.1

12.3

5.0

15

10

212

17.0

SM5S11A

DO-218AB

12.2

13.5

5.0

10

11

198

18.2

SM5S12A

DO-218AB

13.3

14.7

5.0

10

12

181

19.9

SM5S13A

DO-218AB

14.4

15.9

5.0

10

13

167

21.5

SM5S14A

DO-218AB

15.6

17.2

5.0

10

14

155

23.2

SM5S15A

DO-218AB

16.7

18.5

5.0

10

15

148

24.4

SM5S16A

DO-218AB

17.8

19.7

5.0

10

16

138

26.0

SM5S17A

DO-218AB

18.9

20.9

5.0

10

17

130

27.6

SM5S18A

DO-218AB

20.0

22.1

5.0

10

18

123

29.2

SM5S20A

DO-218AB

22.2

24.5

5.0

10

20

111

32.4

SM5S22A

DO-218AB

24.4

26.9

5.0

10

22

101

35.5

SM5S24A

DO-218AB

26.7

29.5

5.0

10

24

93

38.9

SM5S26A

DO-218AB

28.9

31.9

5.0

10

26

86

42.1

SM5S28A

DO-218AB

31.1

34.4

5.0

10

28

79

45.4

SM5S30A

DO-218AB

33.3

36.8

5.0

10

30

74

48.4

SM5S33A

DO-218AB

36.7

40.6

5.0

10

33

68

53.3

SM5S36A

DO-218AB

40.0

44.2

5.0

10

36

62

58.1

SM5S40A

DO-218AB

44.4

49.1

5.0

10

40

56

64.5

SM5S43A

DO-218AB

47.8

52.8

5.0

10

43

52

69.4
