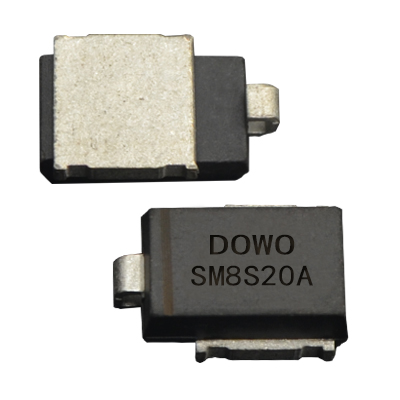

SM8S Series

Encapsulation: DO-218AB
Ppp: 6600W
Vrwm: 10V to 43V
Ipp: 95.1A to 388A
Response Time: <1.0PS

Product Details

• Optimized glass passivated chip

• 6600 W peak pulse power capability with a 10/1000 us waveform, repetitive rate (duty cycle):0.01%

• Meet ISO7637-2 5a surge specification

• AEC-Q101 qualified

• Low leakage current

• Uni-directional polarity

• Excellent clamping capability

• Very fast response time

• RoHS complian

• TJ = 175 °C capability suitable for high reliability and automotive requirement


Part Number Picture Encapsulation VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) Download

SM8S33A

DO-218AB

36.70

40.60

5.0

10

33

124.00

53.3

SM8S10A

DO-218AB

11.10

12.30

5.0

15

10

388.00

17.0

SM8S11A

DO-218AB

12.20

13.50

5.0

10

11

363.00

18.2

SM8S12A

DO-218AB

13.30

14.70

5.0

10

12

332.00

19.9

SM8S13A

DO-218AB

14.40

15.90

5.0

10

13

307.00

21.5

SM8S14A

DO-218AB

15.60

17.20

5.0

10

14

284.00

23.2

SM8S15A

DO-218AB

16.70

18.50

5.0

10

15

270.00

24.4

SM8S16A

DO-218AB

17.80

19.70

5.0

10

16

254.00

26.0

SM8S17A

DO-218AB

18.90

20.90

5.0

10

17

239.00

27.6

SM8S18A

DO-218AB

20.00

22.10

5.0

10

18

226.00

29.2

SM8S20A

DO-218AB

22.20

24.50

5.0

10

20

204.00

32.4

SM8S22A

DO-218AB

24.40

26.90

5.0

10

22

186.00

35.5

SM8S24A

DO-218AB

26.70

29.50

5.0

10

24

170.00

38.9

SM8S26A

DO-218AB

28.90

31.90

5.0

10

26

157.00

42.1

SM8S28A

DO-218AB

31.10

34.40

5.0

10

28

145.00

45.4

SM8S30A

DO-218AB

33.30

36.80

5.0

10

30

136.00

48.4

SM8S36A

DO-218AB

40.00

44.20

5.0

10

36

114.00

58.1

SM8S40A

DO-218AB

44.40

49.10

5.0

10

40

102.00

64.5

SM8S43A

DO-218AB

47.80

52.80

5.0

10

43

95.10

69.4
